ROTOPLAY® is a registered trademark of ABC Rotomoldeo®. We manufacture components for playgrounds.

ROTO ProductsPLAY®

T SERIES SLIDES

PE material

Two types of installation:

1. With foundations, in non-compacted soils.

2. Fixed with chemical anchors, in compact soils.

Various colors available:

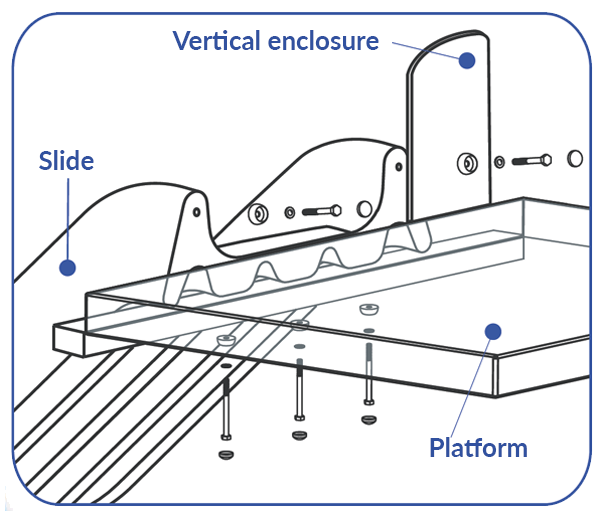

Example of installation on the platform:

AVAILABLE MODELS

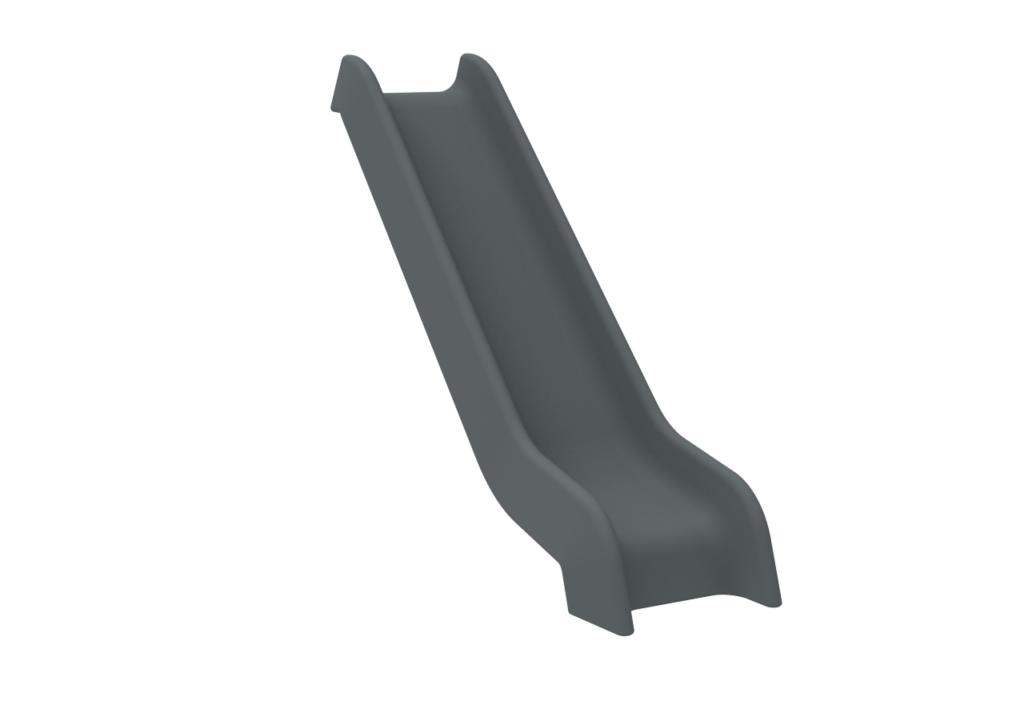

Model T170

Height: 1,700 mm. Length: 2,648 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

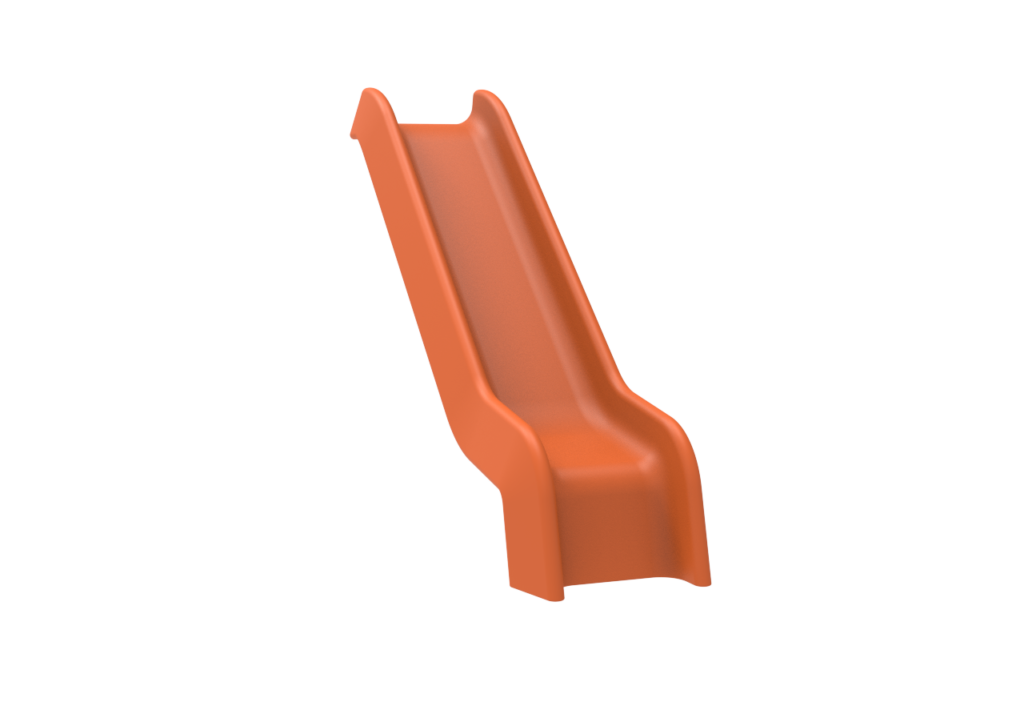

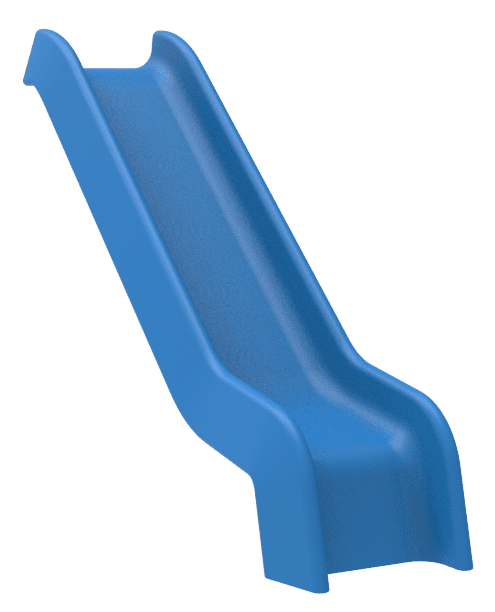

Model T150

Height: 1,500 mm. Length: 2,243 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T140

Height: 1400 mm. Length: 2,279 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

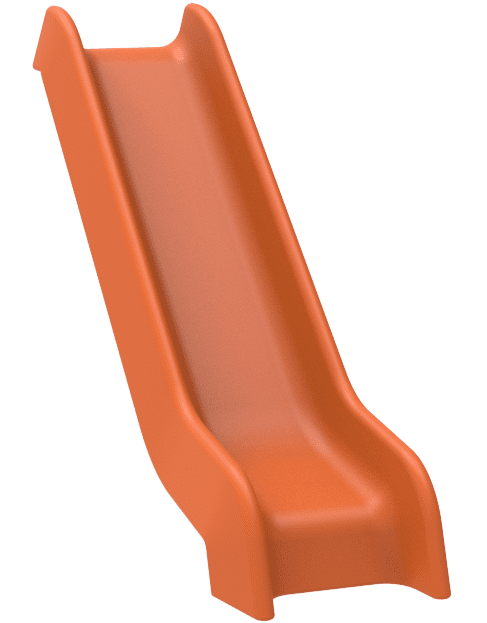

Model T130

Height: 1300 mm. Length: 2,154 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T120

Height: 1200 mm. Length: 2,030 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

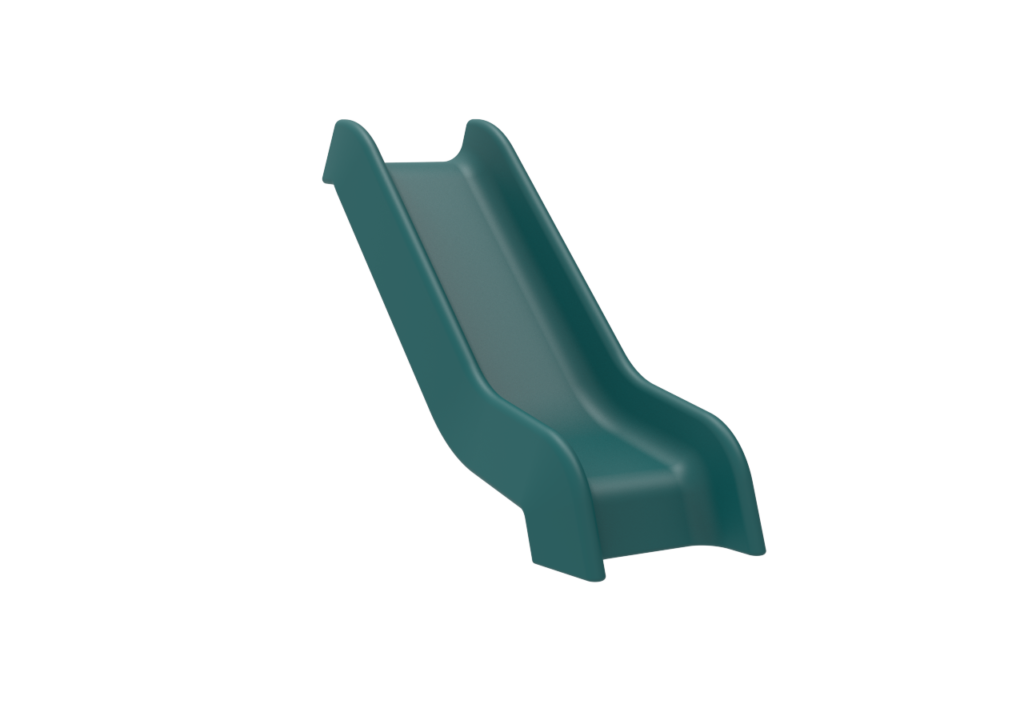

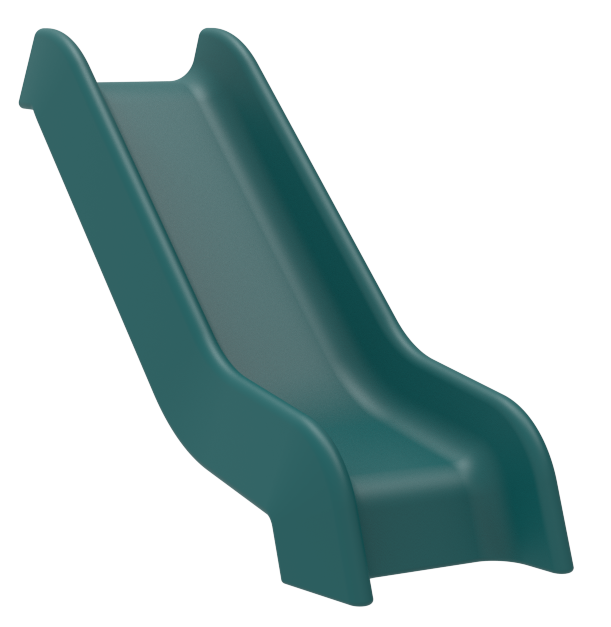

Model T100

Height: 1000 mm. Length: 1,784 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

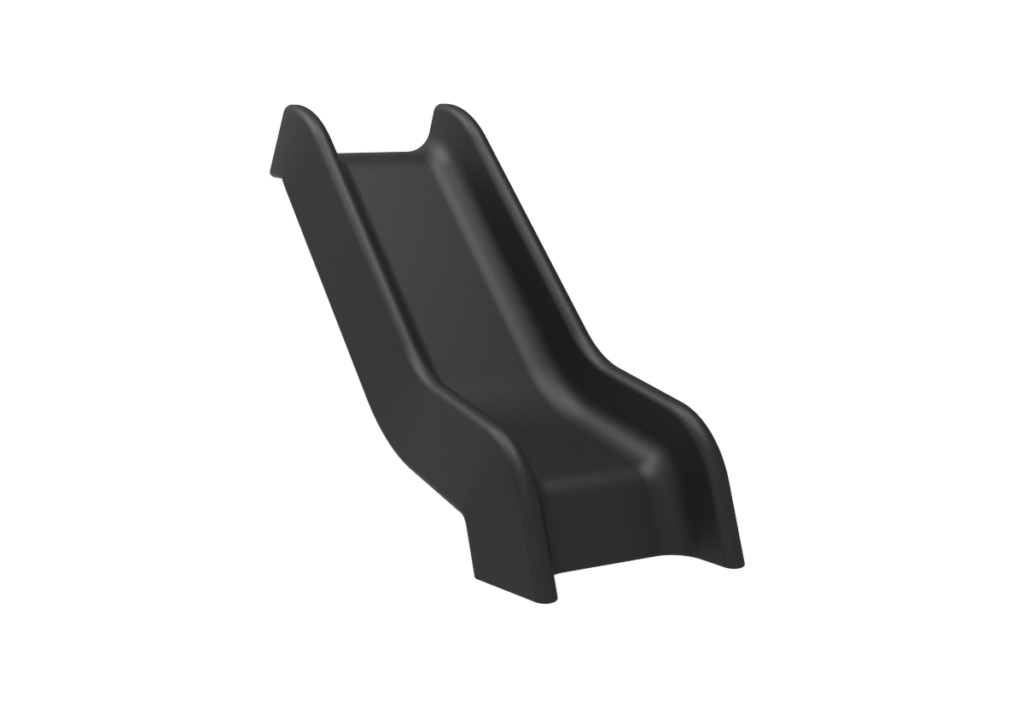

Model T90

Height: 900 mm. Length: 1,660 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T60

Height: 600 mm. Length: 1,115 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 1,000 mm.

ECOLOGICAL T-SERIES SLIDES

The range of eco-friendly T Series slides is a unique sustainable proposal in the industry. From the moment they are manufactured, we collaborate with the environment by substituting petrochemical raw materials for others of natural origin, using recycled materials and optimizing industrial processes .

This helps us reduce the environmental impact of the product throughout its life cycle, as we reduce the content of petrochemical derivatives materials and at the end of its useful life, it can be recycled.

ECO-T SERIES SLIDES

Material PE + Rice husk

Various colors available:

*Due to natural components, the brown color may have traces and lack uniformity.

The Eco-T series is manufactured with a material composed of 15% plant-based material (rice husks) and 85% Linear Low Density Polyethylene.

The use of rice husks also improves the final quality of the product by providing structural advantages.

T SERIES SLIDES 50% RECYCLED

Material PE 50% Recycled

T-Series slides made from 50% recycled material are composed of  virgin polyethylene and post-consumer recycled polyethylene in equal proportions.

This model offers, in addition to an environmentally friendly solution, the option of choosing between two colors

PURE RECYCLED T-SERIES SLIDES

100% Recycled PE Material

The slides of the -T “Pure recycled” series are made from 100% recycled PE. This proposal reflects the spirit of integrating the circular economy into our manufacturing processes and adapting it to the needs of the market. Due to its manufacture with 100% recycled material, this series is only available in black.

AVAILABLE MODELS

Model T170

Height: 1,700 mm. Length: 2,648 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T150

Height: 1,500 mm. Length: 2,243 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T140

Height: 1400 mm. Length: 2,279 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T130

Height: 1300 mm. Length: 2,154 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T120

Height: 1200 mm. Length: 2,030 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T100

Height: 1000 mm. Length: 1,784 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T90

Height: 900 mm. Length: 1,660 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 2,000 mm.

Model T60

Height: 600 mm. Length: 1,115 mm. Width: 657 mm. Slope: 39°. Radius of the fall area at the highest point of the slide: 1,500 mm. Impact area length: 1,000 mm.

SECTIONS FOR TUBE SLIDES

PE material

Sections for assembly of tube slides.

Design your own slide by joining the different pieces that we put at your disposal. We have a multitude of assembly examples.

It is recommended to follow the indications of the UNE-EN 1176-3 Standard.

Available in various colors:

Straight 500

Straight section 1000

Stretch 45º Elbow

Elbow section 30º Elbow section 30º Elbow section 30º Elbow section 30º Elbow section 30º Elbow section 30º

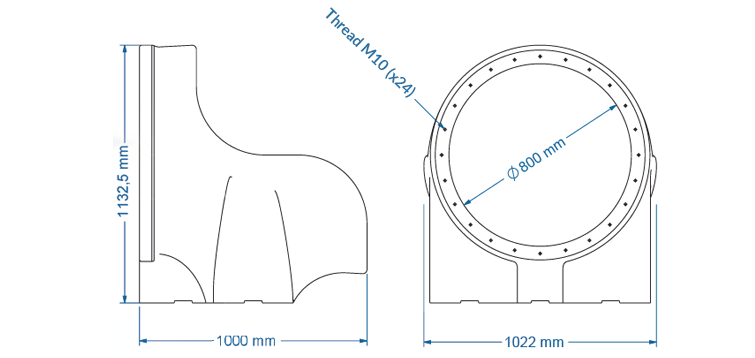

Outlet

Example assemblies

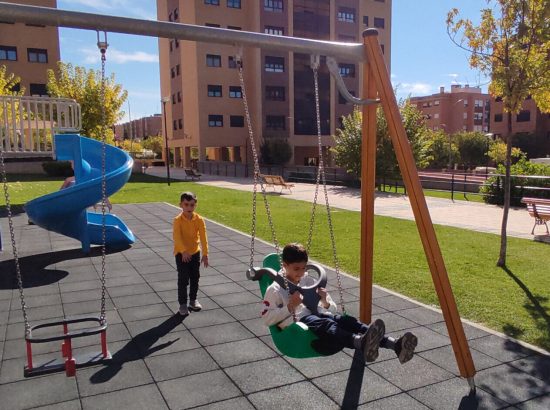

BIG INCLUSIVE SWING SEAT

PE material

Inclusive swing seat with safety restraint system in accordance with EN 1176-2.

It is recommended that the user be accompanied by an adult.

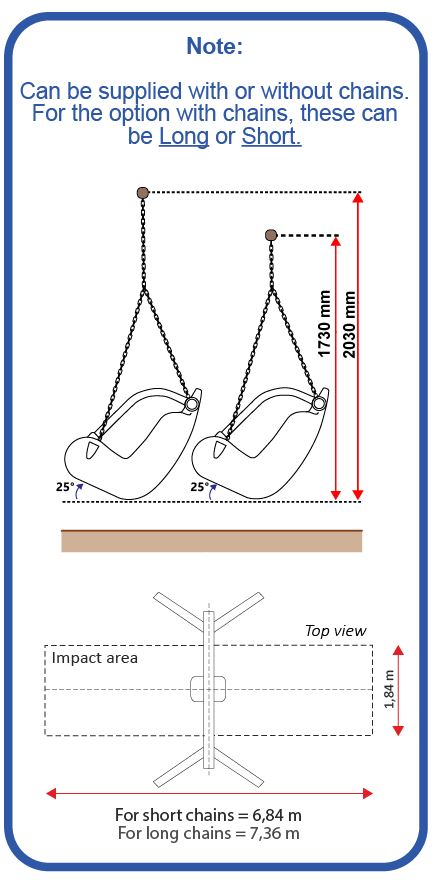

Optionally, it includes suspension chains for installation on all types of gantries that comply with the reference standards.

The drainage hole has been designed to prevent water stagnation in the game.

Recommended age: 5-14 years old. Maximum weight: 120Kg.

AVAILABLE MODELS

BIG WITH HARNESS

BIG WITH BELT

BIG WITH HARNESS AND BELT

Recurso 12

BIG EASY

RAL references

*Due to natural components, the brown color may have traces and lack uniformity.

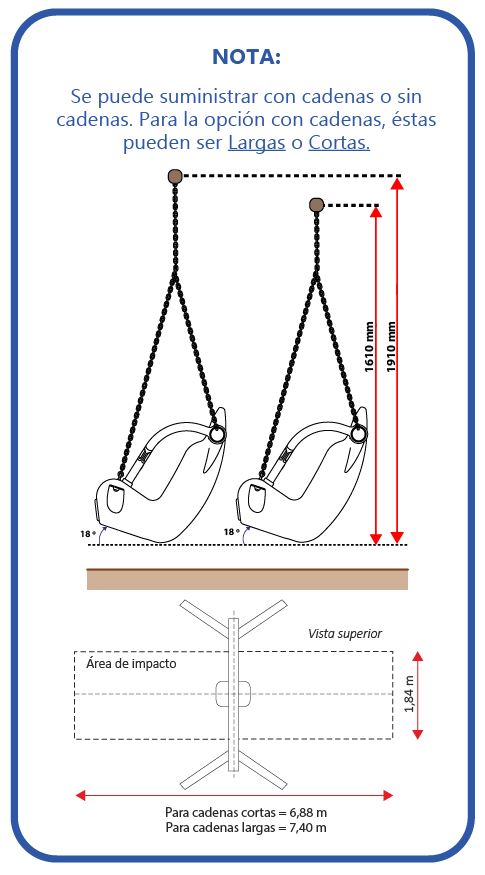

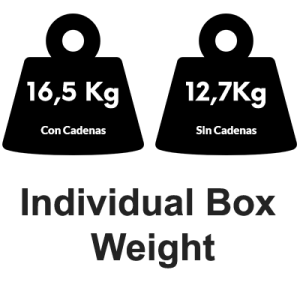

With Chains

No Chains

BROWNIE INCLUSIVE SWING SEAT

PE material

Inclusive children’s swing seat with safety restraint system in accordance with EN 1176-2.

It is recommended that the user be accompanied by an adult.

Optionally, it includes suspension chains for installation on all types of gantries that comply with the reference standards.

The drainage hole has been designed to prevent water stagnation in the game.

Recommended age: 3-8 years old. Maximum weight: 80Kg.

AVAILABLE MODELS

BROWNIE WITH HARNESS

BROWNIE EASY

RAL references

*Due to natural components, the brown color may have traces and lack uniformity.

With Chains

No Chains

ECO INCLUSIVE SWING SEAT

Available in 2 versions ECO!!!

The inclusive swing seat is available in
2 ECO versions
. One of them made with
100% recycled polyethylene
and another version made with
PE + rice husk
. Both versions are available with harness or belts and with or without chains.

The Pure Recycled PE version is composed of recycled PE that comes from the waste generated at ABC Rotomolding from the leftovers of the finished parts.

The version
PE + rice husk
is manufactured with a material composed of a
15 % raw material of vegetable origin
(rice husk) and 85 % Linear Low Density Polyethylene.

With these two versions we help to reduce the environmental impact of the product throughout its life cycle, as we reduce the content of petroleum-derived materials and at the end of their useful life, they can be recycled.

Version in Pure Recycled PE

Colors

The Pure Recycled PE version is only available in the color shown in the image.

For the versions with harness, the fastener will always be blue.

Version in Rice husk

Colors

The version
PE + Rice husk
is only available in the color of the image.

For the harness versions, the fastener will always be blue.

Recommended age: 5-14 years old. Maximum weight: 120Kg.
